Pipe Fittings

• Application
• other, Hydraulic Systems, Industrial Pipe Fittings

• Bend Radius
• Not applicable for rigid connectors

• Coating Type
• Corrosion Resistant

• Color
• Silver / Metallic

• Connection
• Other, Swivel Nut

• Connection Type
• Hose to Pipe Swivel

• Diameter
• 6mm to 50mm

• Flexibility
• Rigid

• Length
• Custom / As requirement

• Material
• Other , Carbon Steel / Stainless Steel / Brass

• Material Grade
• AISI 304 / AISI 316 / C45

• Outer Diameter
• Custom / As per hose specification

• Product Type
• Other, Hose To Pipe Swivel Connector

• Rated Pressure
• Up to 400 Bar

• Sealing Type
• O-ring or Metal-to-Metal

• Section Shape
• Round

• Shape
• Other, Straight

• Standard
• Other, DIN / ISO / JIC / BSP / SAE

• Surface Treatment
• Other, Zinc Plated / Chrome Plated

• Temperature Range
• -40C to 120C

• Tensile Strength
• Up to 700 MPa

• Thickness
• Custom or as specified

• Thread Type
• BSP / NPT / Metric / UNF

• Tolerance
• 0.05 mm

• Usage
• Hydraulic, Pneumatic and Industrial Fluid Transfer

• Yield Strength
• Up to 450 MPa

• Application
• other, Industrial, Plumbing, Gas, Oil

• Bend Radius
• Not applicable (Ferrule fitting)

• Coating Type
• None / Optional Passivation

• Color
• Silver

• Connection
• Other, Compression

• Connection Type
• Threaded

• Diameter
• Up to 38 mm

• Flexibility
• Rigid

• Length
• 10 mm to 50 mm

• Material
• Stainless Steel

• Material Grade
• SS 304 / SS 316

• Outer Diameter
• 6 mm to 38 mm

• Product Type
• Other, SS Pipe Ferrule With Nut

• Rated Pressure
• Up to 400 bar

• Sealing Type
• Metal-to-Metal Seal

• Section Shape
• Other, Circular

• Shape
• Other, Cylindrical and Hexagonal

• Standard
• Other

• Surface Treatment
• Other, Polished

• Temperature Range
• -40C to 400C

• Tensile Strength
• 520 MPa

• Thickness
• 1 mm to 5 mm

• Thread Type
• BSP/NPT/Metric

• Tolerance
• 0.05 mm

• Usage
• Pipe Fitting

• Yield Strength
• 210 MPa

• Application
• other, Pipeline, Water, Oil, Chemical, Hydraulic, Pneumatics

• Bend Radius
• Not suitable for bending

• Coating Type
• None / Electro-polished

• Color
• Silver/Grey

• Connection
• Other, Hose to Pipe with Crimped Cap

• Connection Type
• Hose barb to Pipe

• Diameter
• From 10 mm to 50 mm

• Flexibility
• Rigid

• Length
• Customizable (50-300 mm typical)

• Material
• Stainless Steel

• Material Grade
• SS304/SS316

• Outer Diameter
• According to specified size (commonly 10-50 mm)

• Product Type
• Other, SS Hose To Pipe Connector With Crimping Cap

• Rated Pressure
• Up to 25 bar

• Sealing Type
• Crimped/Friction Seal

• Section Shape
• Round

• Shape
• Other, Cylindrical

• Standard
• Other, ASTM/AISI/DIN

• Surface Treatment
• Other, Polished

• Temperature Range
• -20C to +200C

• Tensile Strength
• 520 MPa (SS304)

• Thickness
• 2 mm (typical)

• Thread Type
• Optional BSP/NPT (on request)

• Tolerance
• 0.1 mm

• Usage
• Fluid & Gas Transmission, Industrial Piping

• Yield Strength
• 210 MPa (SS304)

• Application
• other, Industrial/Automotive

• Coating Type
• Uncoated

• Color
• Silver

• Connection
• Other, Hose Barb

• Connection Type
• Pipe to Hose

• Diameter
• 6 mm

• Flexibility
• Rigid

• Length
• 55 mm

• Material
• Other , Stainless Steel (SS)

• Material Grade
• SS304

• Outer Diameter
• 6 mm

• Product Type
• Other, Pipe to Hose Connector

• Rated Pressure
• Up to 10 bar

• Sealing Type
• Friction Fit

• Section Shape
• Round

• Shape
• Other, Cylindrical

• Standard
• Other, ASTM A276

• Surface Treatment
• Other, Polished

• Temperature Range
• -20C to +200C

• Tensile Strength
• 520 MPa

• Thickness
• Standard Wall

• Thread Type
• None (Barbed for Hose)

• Tolerance
• 0.05 mm

• Usage
• Fluid/Gas Transfer

• Yield Strength
• 210 MPa

• Application
• other, Industrial Hydraulic Equipment

• Bend Radius
• Not Applicable (Solid Block Component)

• Coating Type
• Anti-Corrosive

• Color
• Black / Silver

• Connection
• Other, Threaded Ports

• Connection Type
• Screw / Flange

• Diameter
• Port Size: 1/4 to 1 NPT/BSP

• Flexibility
• Rigid

• Length
• Custom Length (50-200 mm)

• Material
• Other , High Grade Steel / Aluminum

• Material Grade
• EN8 / EN24 / 6061-T6

• Outer Diameter
• Custom Dimensions

• Product Type
• Other, Hydraulic Manifold Block

• Rated Pressure
• Up to 350 Bar (5000 PSI)

• Sealing Type
• O-ring / Metal-to-metal

• Section Shape
• Other, Solid Block

• Shape
• Other, Rectangular / Block

• Standard
• Other, ISO / DIN

• Surface Treatment
• Other, Black Oxide Coating / Anodized

• Temperature Range
• -20C to +120C

• Tensile Strength
• >600 MPa

• Thickness
• Customizable (10-100 mm)

• Thread Type
• NPT / BSP / Metric

• Tolerance
• 0.01 mm

• Usage
• Hydraulic Systems Integration

• Yield Strength
• 370-450 MPa

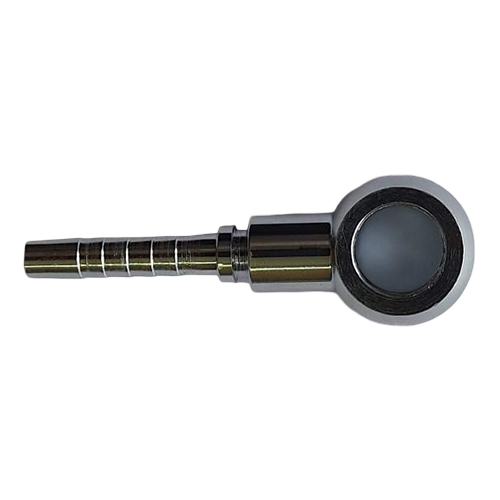

• Application
• other, Fuel, Oil & Hydraulic Fluid Transfer

• Bend Radius
• Fixed, determined by pipe length and diameter

• Coating Type
• Rust Resistant

• Color
• Silver / Custom

• Connection
• Other, Banjo Fitting

• Connection Type
• Banjo Bolt

• Diameter
• As per requirement (6 mm to 16 mm)

• Flexibility
• Rigid

• Length
• 100 mm - 600 mm

• Material
• Other , Mild Steel / Stainless Steel / Brass

• Material Grade
• SS 304 / SS 316 / IS 3074

• Outer Diameter
• 6 mm - 16 mm

• Product Type
• Other, Banjo Pipe Assembly

• Rated Pressure
• Upto 300 bar

• Sealing Type
• Rubber O-ring / Copper Washer

• Section Shape
• Round

• Shape
• Other, Cylindrical with Banjo Eye

• Standard
• Other, DIN / ISO / Custom

• Surface Treatment
• Other, Chrome Plated / Zinc Plated / Polished

• Temperature Range
• -20C to +180C

• Tensile Strength
• Up to 500 MPa

• Thickness
• 1.5 mm

• Thread Type
• Metric / BSP / Custom

• Tolerance
• 0.01 mm

• Usage
• Hydraulic / Automotive / Fuel Line Systems

• Yield Strength
• Up to 250 MPa

• Application
• other, Leak-tight Connections in Critical Applications

• Bend Radius
• Not recommended to bend, rigid component

• Coating Type
• None (Natural Stainless Steel Finish)

• Color
• Silver

• Connection
• Other, Male Threaded

• Connection Type
• Threaded Male-Male

• Diameter
• Varies by Specification (e.g., 6mm, 8mm, 10mm, etc.)

• Flexibility
• Rigid

• Length
• 40 mm - 80 mm (as per specification)

• Material
• Other , Stainless Steel (SS)

• Material Grade
• SS316 / SS304

• Outer Diameter
• 1/4 inch to 1 inch (varies by model)

• Product Type
• Other, Face Seal Adaptor

• Rated Pressure
• Up to 6000 psi

• Sealing Type
• Face Seal (Metal-to-Metal or with Viton/PTFE as per requirement)

• Section Shape
• Other, Cylindrical

• Shape
• Other, Hexagonal Body with Threaded Ends

• Standard
• Other, ASTM A182 / ASME SA182

• Surface Treatment
• Other, Passivated

• Temperature Range
• -40C to 230C

• Tensile Strength
• 515 MPa (min, for SS316)

• Thickness
• 5 mm (subject to design)

• Thread Type
• UNF/NPT/BSP as per request

• Tolerance
• 0.02 mm

• Usage
• Hydraulic and Pneumatic Systems, Process Instrumentation

• Yield Strength
• 205 MPa (min, for SS316)
